LD 2 DPN Air Cargo Containers

Leading ULD containers offering lowest total cost of ownership!

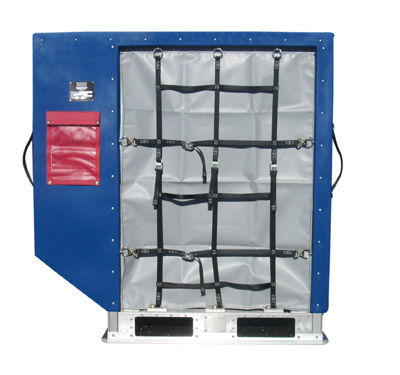

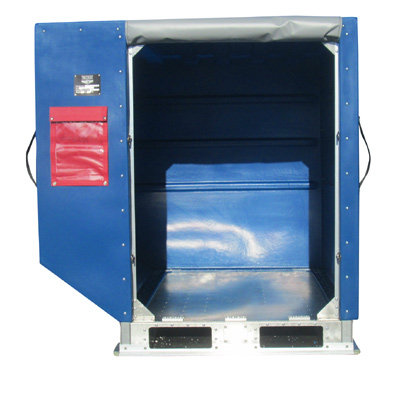

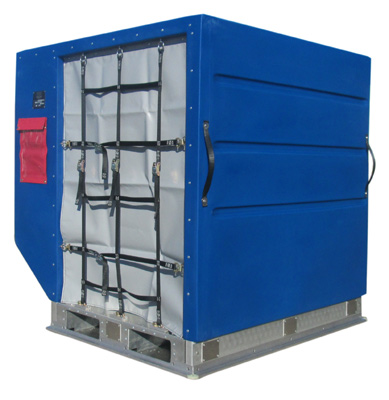

LD 2 DPN Air Cargo Container
Granger Aerospace LD 2 DPN Air Cargo Container
LD 2, Granger LD 2, Granger Aerospace LD 2, LD 2 DPN, LD 2 Forkliftable
LD 2 DPN, LD 2, DPN Container, Granger Aerospace ld 2, Granger Plastics LD 2
Granger Aerospace LD 2, LD 2, Granger LD 2 DPN

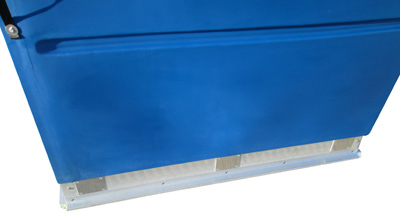

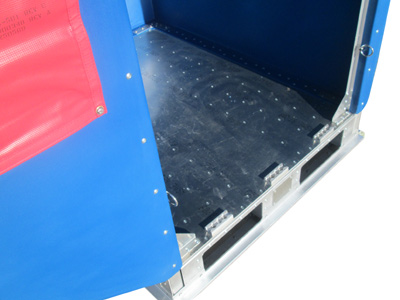

LD 2 DPN Base, LD 2 DPN Air Cargo Container, LD 2, DPN Container, DPN Air Cargo, Granger Aerospace LD 2 DPN
LD 2 DPN Handle, LD 2 Air Cargo Container Handle, LD 2 Air Cargo Container, Granger Aerospace LD 2
Click on any of the thumbnail images above to display the larger image in the LD 2 Air Cargo Container Gallery.



LD 2 DPN Technical Specifications

Technical Specifications
TSO   N/A
IATA   DPN
SAE AS 36100 class   LD-2/DPN
Granger Aerospace P/N   NAS 3610 (2K2C)
Base size 1534 x 2438 mm 79.0 in x 60.4 in
Height 1625 mm 64.0 in
Roof length 2438 mm 79.0 in
Max. gross weight 2449 kg 3500 lb
Internal volume 3.5 cu m 125 cu ft
External volume 4.7 cu m 166 cu ft
Door opening 2298 x 1532 mm 53.13 in x 57.75 in
Tare weight from 118.8 kg 262 lbs.

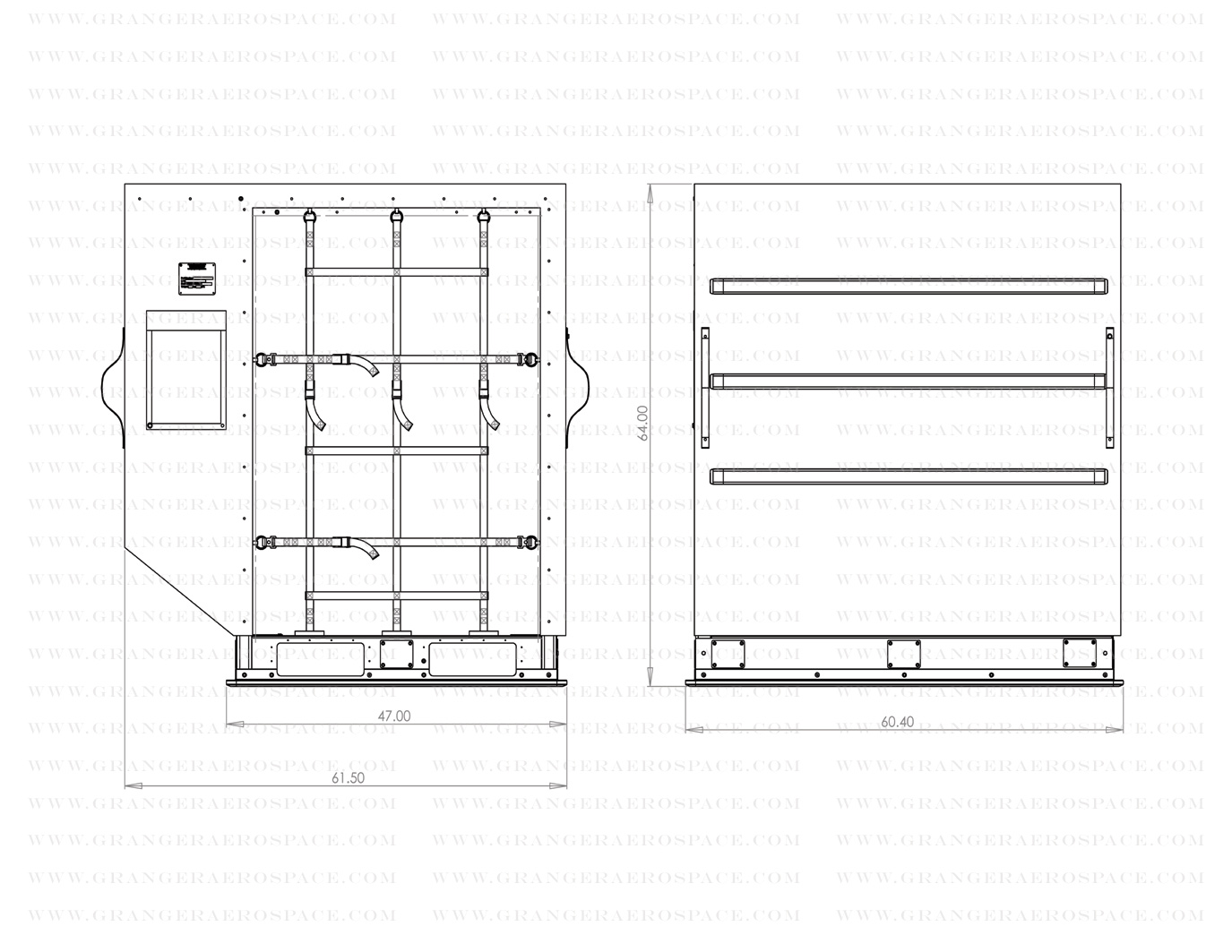

LD 2 DPN Dimensional Drawings

Click below to download LD 2 DPN Dimensional PDF
LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPN dimensions

LD 2 DPN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.


    • LD 2 Air Cargo Container Links

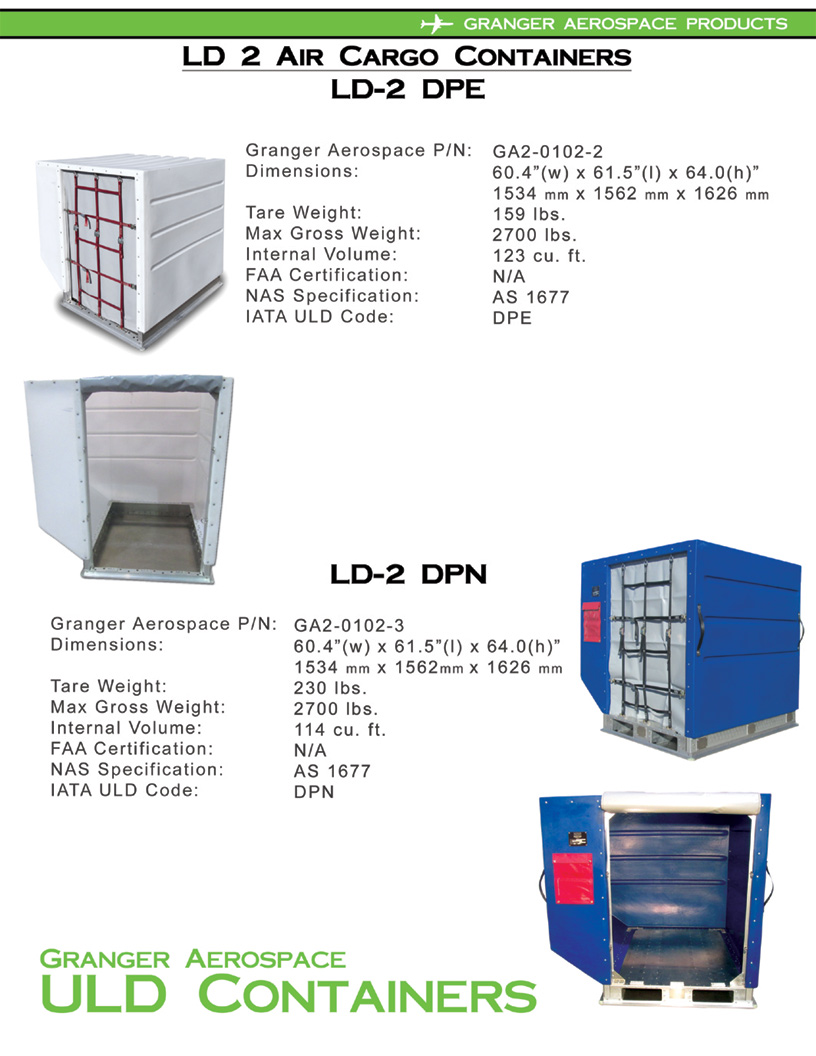

    LD 2 DPN Information

    Click below to download LD 2 DPN Technical PDF
    LD 2 Specifications, Dimensions, LD 2 Air Cargo Container Dimensions, DPN Dimensions, DPN dimensions
